Metal Wall Trim

£12.90 (inc VAT) £10.75 (ex VAT)



Metal Wall Trim

£12.90

inc. VAT

Ex VAT
3.0m
SKU: MT-Wall-Trim-40-90

 Same Day Dispatch - 2 - 5 Working Days Delivery

 1 to 5 Working Day Delivery - East England & London Branch

 Same Day Dispatch - 2 - 4 Working Days Delivery

 1 to 5 Working Day Delivery

 2 to 10 Working Day Delivery (Insulation Delivery)

 Free delivery on some insulation orders*

 2 - 10 Working Days Delivery

 Same Day Dispatch - 1 - 3 Working Days Delivery

 1 to 2 Working Days (Tuesday - Friday Delivery Only)

 1 to 5 Working Days Delivery - Preston Branch

 Articulated Lorry 3 to 5 Days – Rigid 5 to 10 Days

 2 - 5 Working Days Delivery

 2 - 10 Working Days Delivery

 Same Day Dispatch - 1 - 4 Working Days Delivery

 1 - 5 Working Days Delivery on most fixings - (See Delivery Tab below)

 Free Delivery on Fixings orders over £200 ex. VAT*

 5 - 15 Working Days with Manufacturing Time

 1 to 7 Working Days (UK Insulation Network)

 Free delivery on some insulation orders*

  Same Day Dispatch - 1 - 2 Working Days Delivery

  Same Day Dispatch - 1 - 2 Working Days Delivery

  Same Day Dispatch - 1 - 4 Working Days Delivery

 1 to 2 Working Days (Tuesday - Friday Delivery Only)

 Free Delivery on GrufeKit orders over £400 ex. VAT

 Delivery of Trims has been impacted by Nationwide courier issues.
Unfortunately our alternative couriers can't currently facilitate 3m lengths as a nationwide delivery option.
For Metal Trims we may need to cut these into 3x 1m lengths
For Sure Edge Trims we may need to cut these into 2 x 1.25m lengths.
We will contact you if your order is affected by this.

Qty

PayPal

Pay via:




Metal Wall Flashing Trim

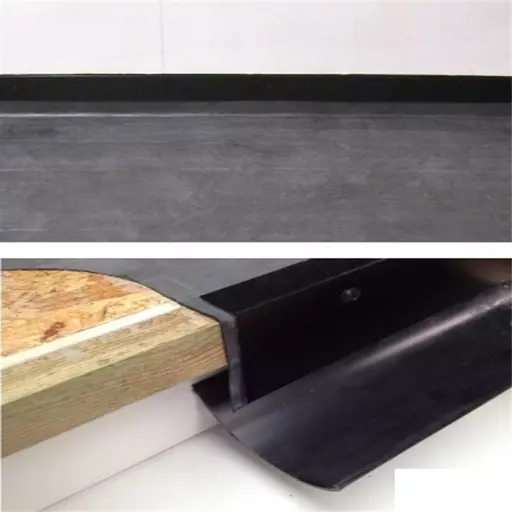

Metal wall trims are the solution for creating a waterproof junction between the wall and the roof to prevent water from entering and causing subsequent damage. Apply a bead of ClassicBond black mastic sealant over the top of the wall trim to create a strong, flexible and waterproof seal.

They can also be used as Gutter Drip Trim when installing Metal Edge Trims, which can be fixed on either the top or sides. When used as a wall up-stand trim, the membrane is pressed into the wall or up-stand using the wall trim.

If this wall flashing is too big for your job, try our 25mm x 50mm metal wall trim which is 40mm shorter. Additionally, if you’re undergoing a full project, don’t miss our range of Classic Bond accessories.

Please note: This will require the use of an Angle Grinder to create channels in brickwork or render.

If you don't have an angle grinder, use our 3-metre termination bars instead of the wall trim to create a watertight seal on all up-stands.

Product Specifications:
Colour: Black (Plastisol coated on the outside only)
Quantity in Pack: 1
Includes: 40mm self-sealing Hex Fasteners (4 Screws per Trim)

Dimensions:

  • Width: 25mm / 40mm
  • Height: 90 mm
  • Length: 3.0m

How to apply Metal Wall Trim for an EPDM Roof

The sealant is inserted along the top of the Wall Trim into the pre-ground slot in the wall or up-stand. Watch our simple video guide for easy instructions on installation. If you cannot access the video, follow the instructions below as detailed in the video:

  1. Chase out a slot in the wall using a mortar chisel or angle grinder. This should be a minimum of 150 millimetres from the roof deck
  2. Fit the rubber membrane on the roof surface area and trim the excess membrane using a sharp knife following the chase out in the wall
  3. Cut the rubber membrane vertically or at an angle away from the corner using a sharp knife
  4. Cut elastoform tape to size. This should be a minimum of 150 millimetres wide and extend from the chaise out onto the deck and along the roof a minimum of 75 millimetres/3 inches
  5. Apply rubber primer and allow to dry
  6. Install elastoform tape starting at the top of the wall
  7. Mould elastoform tape into position by stretching the tape where necessary, and keep the tape in a warm place prior to use to help with mobility
  8. Apply pressure to a lustre form tape using a silicon seam roller and penny roller Install wall trim into the slot (additional wall trims should be overlapped by a minimum of 75 millimetres/three inches)
  9. Drill wall trim and wall with a seven-millimetre masonry drill
  10. Insert a raw plug into hole
  11. Screw in the perimeter fastener using hex bits and drill
  12. Apply ClassicBond black matic to wall trim

Colour: Black (Plastisol coated on the outside only)

Quantity in Pack: 1

Includes: 40mm self-sealing Hex Fasteners

Dimensions:

  • Width: 25mm / 40mm
  • Height: 90 mm
  • Length: 3.0m

When do you dispatch orders?

If your order is placed before 12pm we aim to have these processed and dispatched on that same day. However some items have an earlier cut off time and will be dispatched the following day.

How much will my delivery cost?

Our delivery costs vary depending on what product is ordered and where it is being delivered to. When you add items to your basket and proceed to checkout the delivery prices will be stated. We keep our delivery costs as low as possible and only pass on the rates that our delivery partners charge us.

How long will my delivery take?

On the product page you will see our usual lead time for our items, these are above the ADD TO BASKET button. These are a guide only and we aim to get your items delivered to you asap.

What is the difference between Standard Delivery and Express Delivery?

Standard delivery is usually delivered within 1 - 4 working days

Express delivery is usually delivered within 1 - 2 working days

Metal Wall Trims - Installation Guide
