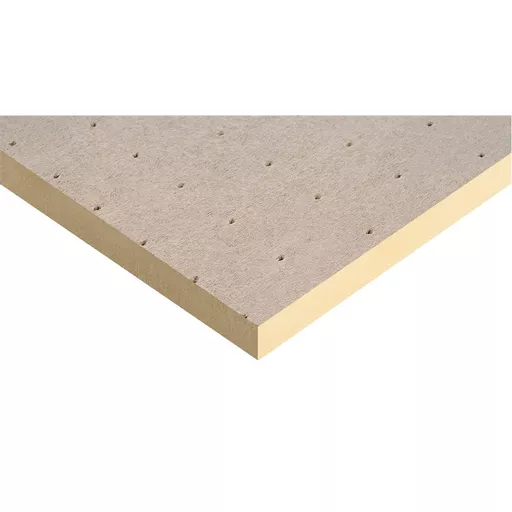

Kingspan TT47 Tapered Insulation

Kingspan Thermataper TT47 is a high-performance insulation with a fibre-free rigid thermoset polyisocyanurate (PIR) core with a built-in taper.

It is designed to enhance water drainage for flat roofs waterproofed with fully adhered single-ply, partially bonded built-up felt, mastic asphalt and cold liquid applied waterproofing.

Kingspan Thermataper TT47 is available with FM Approval to FM 4470 - please see the product brochure below or search 'Kingspan Therma' on the FM Approvals online listing website for the conditions of approval.

Please contact us for a Tapered Scheme or use our Tapered Insulation Form.

There are three Kingspan Thermataper TT47 Systems that can be used:

• Kingspan Thermataper TT47 - comprises high-performance rigid thermoset fibre-free polyisocyanurate (PIR) insulation;
• Kingspan Thermataper TT47-K Systems - combine the tapered insulation of Kingspan Thermataper TT47 with a premium performance rigid thermoset phenolic Kingspan Kooltherm packer board, providing a slimmer solution
• Kingspan Thermataper TT47-O Systems - combine the tapered insulation of Kingspan Thermataper TT47 with a Kingspan OPTIM-R packer board, providing the thinnest solution.

Important details about this product:

• Board Size: 1200mm x 1200mm
• Thicknesses: 30-50mm, 50-70mm, 70-90mm, 90-110mm, 110-130mm, 130-150mm
• Manufactured Rate of Fall: 1:60 (Also available on special order 1:30 / 1:40 / 1:80)
• Thermal Conductivity: The effective thermal conductivity in a tapered roofing system is specific to the individual roof design
• Facings: Coated glass tissue
• Core: High-performance rigid thermoset polyisocyanurate (PIR) insulant manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP)
• Unit: Sold in Packs

Key Features & Advantages:

• Insulation and drainage in one – provides a practical alternative to screeding, structural falls or firrings
• Fully compatible with single-ply non-bituminous membranes that are fully bonded with solvent-based adhesive systems
• Fully compatible with most bitumen-based and mastic asphalt waterproofing systems
• Easy to handle and install
• Ideal for new build and refurbishment

Kingspan TT47 Thermataper Pack Sizes & Coverage by Thickness:

• 30 – 50mm – 8 Boards – 11.52sq.m
• 50 – 70mm – 6 Boards – 8.64sq.m
• 70 – 90mm – 4 Boards – 5.76sq.m
• 90 – 110mm – 4 Boards – 5.76sq.m
• 110 – 130mm – 4 Boards – 5.76sq.m
• 130 – 150mm – 2 Boards – 2.88sq.m

Please contact us for bespoke tapered schemes and single sheets
