GRP Expansion Trim (E280)

The Expansion Trim is used either as a decorative finish to simulate a lead mop roll or over the top of an expansion gap in roof deck. We advise using expansion gaps on GRP roofs over 50 square metres in size. 25mm gaps should be made in the roof deck boards and the E280 trim fitted over the top using PU trim adhesive and pins to hold it in place prior to installing the GRP matting and resin.

This is a Glass Reinforced Polyester flat roof system designed and engineered for flat roof applications. Fully integrated all in one system where the components work together on virtually all types of flat roofs and vertical surfaces in any domestic or commercial application to provide the perfect all weather protection.

Installation
A single batten should be fixed on to the outside fascia board level with the top edge of the deck. Cromar PU adhesive should be applied to the battens in 30mm beads.

Key Features

• Cold applied - No heat needed
• Easy to form
• Durable - Resists heavy foot traffic
• Virtually maintenance free
• Impact resistant
• Fire retardant
• Storm proof
• Frost proof

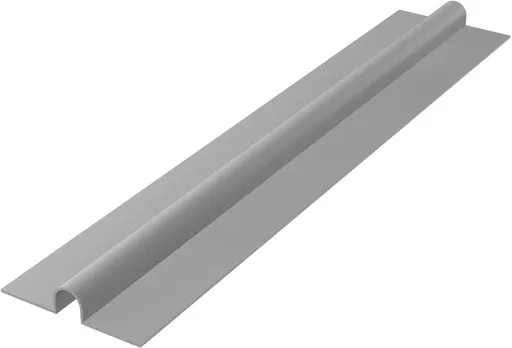

Trim Dimensions

• Length : 3 metres
• Width : 110 mm
• Raised Height: 35 mm
• Height : 125 mm

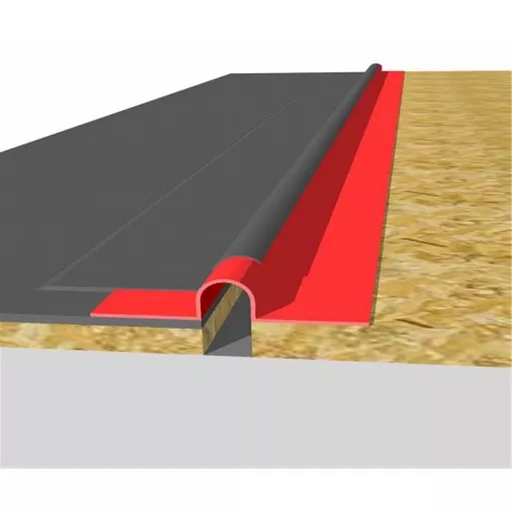

Note: Trims are Grey, Red is to show application of the trim.
