Roof Drain 40mm 920mm x 20m 18.4 sq.m

Questions & Answers

Quick Links

SKU: 40S1RXSSh

20.000

Customer Reviews

Related Products

CALCULATORS DIVIDER

UKFR - ROOFING AND INSULATION SPECIALISTS

Fixings Calculator

Effortlessly secure your warm roof deck with the correct size thermally broken fixings using our intuitive calculator! Simply input your deck type, insulation thickness, and top deck thickness (if applicable) and the calculator will add the compatible size tube and screw combination to your basket. It is crucial to use the correct warm deck insulation fixings so ensure lasting roof durability by using our simple calculator today!

UKFR - ROOFING AND INSULATION SPECIALISTS

ClassicBond Calculator

EPDM Rubber Roofing has never been easier! Simply enter your roof dimensions, deck type, and roof edges, and the calculator will add all necessary materials for installing your ClassicBond EPDM rubber roof to your basket.

Experience simplicity with our ClassicBond Calculator today!

UKFR - ROOFING AND INSULATION SPECIALISTS

SkyGuard Calculator

SkyGuard Shed Roofing has never been easier!

Our innovative shed roof calculator will automatically add the required quantity of materials to your basket - simply enter your roof dimensions, select your edges and trim preferences and add to basket.

Simplify your DIY with the SkyGuard Shed Roof Calculator today!

Start - SkyGuard Calc

End - SkyGuard Calc

• Description
• Product Details
• Delivery
• Documents

Roofdrain is designed for use in extensive green roof systems. It provides both drainage and attenuation in a convenient, lightweight and cost effective system.

The drainage design of intensive green roofs requires only a simple soil layer; by contrast the modern method of an extensive green roof requires a combination of efficient drainage and water attenuation in order to allow the ecology to flourish.

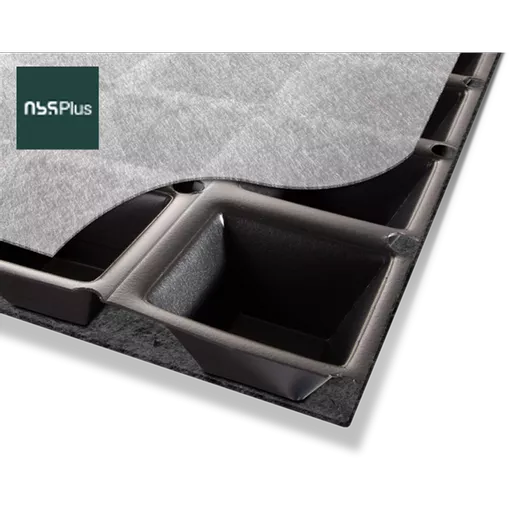

Roofdrain allows the storage of water within the nodes of the of the HDPE core whilst facilitating the efficient drainage of any excess water away from the roof. This helps prevent the root growing media from drying out during dry periods and from becoming waterlogged during periods of wet.

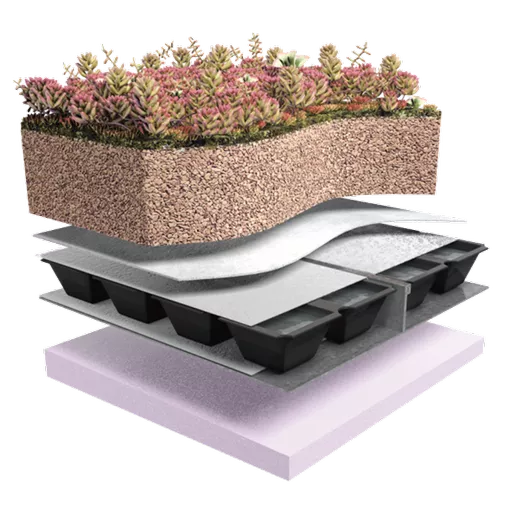

When used within a roof construction Roofdrain provides a versatile system for the collection of surplus seepage water at the base of the growing medium and for the prevention of water pressure on the structural waterproofing.

Discover key information about this product below:

• Roll Width: 9.20m
• Roll Length: 50m
• Roll Coverage: 18.4 sq.m
• Drainage Thickness: 45mm
• Total Thickness: 46.9mm
• Saturated Weight: 16.50kg per sq.m
• Water Storage Capacity: 14 litres per sq.m
• Materials: Recycled high density polyethylene (HPDE) with a moisture retentive protective fleece.

Product Highlights & Benefits

• Cost Effective
• Lightweight drainage solution
• Environmentally Friendly

When do you dispatch orders?

If your order is placed before 12pm we aim to have these processed and dispatched onto our lorries the next day.

However, sometimes our lorries are already full and booked, so this might be 2 to 5 working days after you place your order. Some areas are also subject to set delivery days due to their distance from the local branch.

Please ensure to leave a mobile number so that we can contact you with your delivery date once we have received confirmation from the local branch. This also allows ourselves or the delivery driver to contact you if there are any issues with your delivery.

How much will my delivery cost?

Our delivery costs vary depending on what product is ordered and where it is being delivered to. When you add items to your basket and proceed to checkout the delivery prices will be stated. We keep our delivery costs as low as possible and only pass on the rates that our delivery partners charge us.

How long will my delivery take?

On the product page you will see our usual lead time for our items, these are above the ADD TO BASKET button. These are a guide only and we aim to get your items delivered to you ASAP.

Where will you deliver my order to?

Please note that all of our deliveries are kerbside only and it is your responsibility to get it from the Kerb onto your property. It is at the discretion of the courier where the order is left.

Please ensure you have ample space to offload.

Delivery access and site restrictions

We use pallet couriers for these items and they tend to be delivered on large 18T/26T lorries.

A Rigid lorry is approximately 18 / 26 tonnes with the capacity for 12 / 14 pallets. They are usualy 10m / 12m Long, 4m high and 2.6m wide as an average.

Please ensure you advise us of any restrictions or access issues you may forsee with this size vehicle, failure to do so may result in extra delivery charges.

	ABG Roofdrain Install Guide		ABG Green Roof Brochure
	ABG Roof Drain 40mm - 40S1RXSSh - Data Sheet
